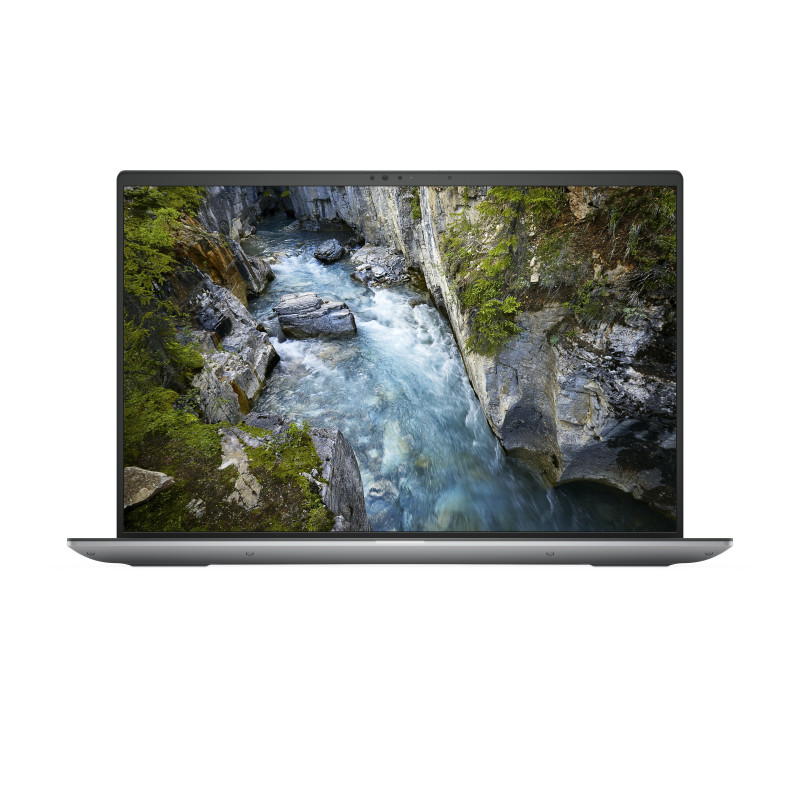

DELL Precision 5690. Product type: Mobile workstation, Form factor: Clamshell. Processor family: Intel Core Ultra 7, Processor model: 165H. Display diagonal: 16", HD type: Full HD+, Display resolution: 1920 x 1200 pixels. Internal memory: 32 GB, Internal memory type: LPDDR5x-SDRAM. Total storage capacity: 1 TB, Storage media: SSD. On-board graphics card model: Intel Arc Graphics, Discrete graphics card model: NVIDIA RTX 1000 Ada. Operating system installed: Windows 11 Pro. Product color: Gray

Product type	Mobile workstation
Product color	Gray
Form factor	Clamshell
Market positioning	Business
Intel® vPro™ Platform Eligibility	Yes
Display diagonal	16"
Display resolution	1920 x 1200 pixels
Touchscreen	No
HD type	Full HD+
Panel type	IPS
LED backlight	Yes
Native aspect ratio	16:10
Anti-glare screen	Yes
Display brightness	500 cd/m²
Pixel density	142 ppi
RGB color space	DCI-P3
Color gamut	100%
Maximum refresh rate	60 Hz
Contrast ratio (typical)	1300:1
Processor family	Intel Core Ultra 7
Processor manufacturer	Intel
Processor model	165H
Processor generation	Intel® Core™ Ultra (Series 1)
Processor cores	16
Processor threads	22
Processor boost frequency	5 GHz
Performance cores	6
Efficient cores	8
Low Power Efficient-cores	2
Performance-core Max Turbo Frequency	5 GHz
Efficient-core Max Turbo Frequency	3.8 GHz
Low Power Efficient-core Max Turbo Frequency	2.5 GHz
Performance-core base frequency	1.4 GHz
Efficient-core base frequency	0.9 GHz
Low Power Efficient-core Base Frequency	700 MHz
Processor cache	24 MB
Processor cache type	Smart Cache
Number of processors supported	1
Processor base power	28 W
Maximum turbo power	115 W
Neural processor unit (NPU)	Intel AI Boost
Sparsity support	Yes
Windows Studio effects support	Yes
AI software frameworks supported by NPU	DirectML, ONNX RT, OpenVINO, Windows ML
Internal memory	32 GB
Internal memory type	LPDDR5x-SDRAM
Memory form factor	On-board
Memory layout (slots x size)	Not available
Memory slots	Not available
Memory channels	Dual-channel
Memory data transfer rate	7467 MT/s
Total storage capacity	1 TB
Storage media	SSD
Optical drive type	No
Total SSDs capacity	1 TB
Number of SSDs installed	1
SSD capacity	1 TB
SSD interface	PCI Express 4.0
NVMe	Yes
SSD form factor	M.2
SSD performance class	40
M.2 SSD size	2280 (22 x 80 mm)
Compatible memory cards	Not supported
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete graphics card model	NVIDIA RTX 1000 Ada
On-board graphics card model	Intel Arc Graphics
Discrete GPU manufacturer	NVIDIA
Discrete graphics card memory	6 GB
Discrete graphics memory type	GDDR6
On-board GPU manufacturer	Intel
On-board graphics card family	Intel Arc Graphics
Number of built-in speakers	4
Speakers manufacturer	Waves
Built-in microphone	Yes
Number of microphones	2
Front camera	Yes
Front camera resolution (numeric)	2.07 MP
Front camera resolution	1920 x 1080 pixels
Front camera HD type	Full HD
Video capturing speed	30 fps
Infrared (IR) camera	Yes
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Antenna type	2x2
WLAN controller model	Intel Wi-Fi 7 BE200
WLAN controller manufacturer	Intel
Ethernet LAN	No
Bluetooth	Yes
MIMO	Yes
MIMO type	Multi User MIMO
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
HDMI ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
HDMI version	2.1
Thunderbolt 4 ports quantity	2
Intel® Thunderbolt 4	Yes
Combo headphone/mic port	Yes
USB Type-C DisplayPort Alternate Mode	Yes
Ambient light sensor	Yes
Accelerometer	Yes
Proximity sensor	Yes
Gyroscope	Yes
Hall sensor	Yes
Numeric keypad	No
Pointing device	Touchpad
Keyboard backlit	Yes
Keyboard language	Italian
Copilot key	Yes
Operating system installed	Windows 11 Pro
Operating system architecture	64-bit
Operating system language	German, Dutch, English, French, Italian
Trial software	No Microsoft Office Licence Included - 30 day Trial Offer Only
Microsoft Copilot	Yes
Battery capacity	99.5 Wh
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	6
Battery voltage	11.55 V
Battery recharge time	3 h
Fast charging	Yes
Battery charge indicator	Yes
Battery weight	12.8 oz (363 g)
AC adapter power	165 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
USB Power Delivery	Yes
Cable lock slot	Yes
Cable lock slot type	Wedge
Fingerprint reader	Yes
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0
Password protection	Yes
Operating temperature (T-T)	0 - 35 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	-598.4 - 120000" (-15.2 - 3048 m)
Non-operating altitude	-598.4 - 420000" (-15.2 - 10668 m)
Operating shock	110 G
Non-operating shock	160 G
Operating vibration	0.66 G
Non-operating vibration	1.3 G
Wi-Fi certified	Yes
Sustainability certificates	ENERGY STAR, TCO
Weight	4.48 lbs (2.03 kg)
Width	13.9" (353.7 mm)
Depth	9.46" (240.3 mm)
Height	0.873" (22.2 mm)
Height (front)	0.807" (2.05 cm)
Height (rear)	0.874" (2.22 cm)
Total carbon footprint (kg of CO2e)	246
Carbon emissions, manufacturing (kg of CO2e)	200
Carbon emissions, logistics (kg of CO2e)	7
Carbon emissions, energy usage (kg of CO2e)	36
Carbon emissions, end-of-life (kg of CO2e)	2
Total carbon emissions, w/o use phase (kg of CO2e)	210
PAIA version	GaBi version 1, 2024
Mouse included on selected markets only	No
Stylus pen	No
Cables included	AC
RAID support	No
Maximum on-board graphics card resolution	7680 x 4320 pixels
Maximum discrete graphics card resolution	3840 x 2160 pixels
